mITX-DNV
Mini-ITX Industrial Motherboard supporting Intel® Atom® Processor C3000 Series
Description du produit
DOWNLOAD DATASHEET
Specifications
- 1x VGA for display output
- 6x GbE LAN for Ethernet
- 4x USB 3.0, 2x USB 2.0, 2x RS232/422/485, 1x 8-bit DIO for peripherals
- Up to 6x SATA 3.0, Up to 1x mSATA, 1x M.2 Key B, optional eMMC for storage
- Up to 1x mPCIe, 1x PCIe x8 for expansion
Ideal for Dense Low-Power Applications
Low-power Server Motherboard

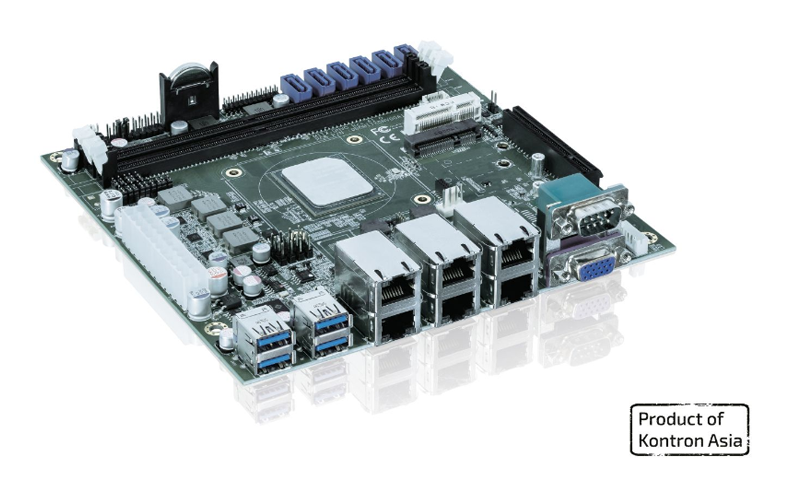

Kontron's mITX-DNV is a Mini-ITX industrial motherboard equipped with Intel® Atom® C3000 Series processors, which is specially suitable for dense low-power network, storage, and IoT applications.
Large Storage and Networking Capacity
It has up to six SATA 3.0 sockets and one M.2 Key B socket for HDD / SSD storage device connection as well as optional eMMC drive soldered on-baord. In addition, It also supports six GbE LAN ports to deliver sufficient traffic flow for huge data volumes.
Flexible Expansion
The mITX-DNV reserves one mPCIe slot and one PCIe x8 slot, allowing users to expand specific functions such as wireless connection or additional network interface card.
