Quad Port SATA Controller
Triple mSATA Sockets • eSATA Front Connector
Description du produit
DOWNLOAD DATASHEET

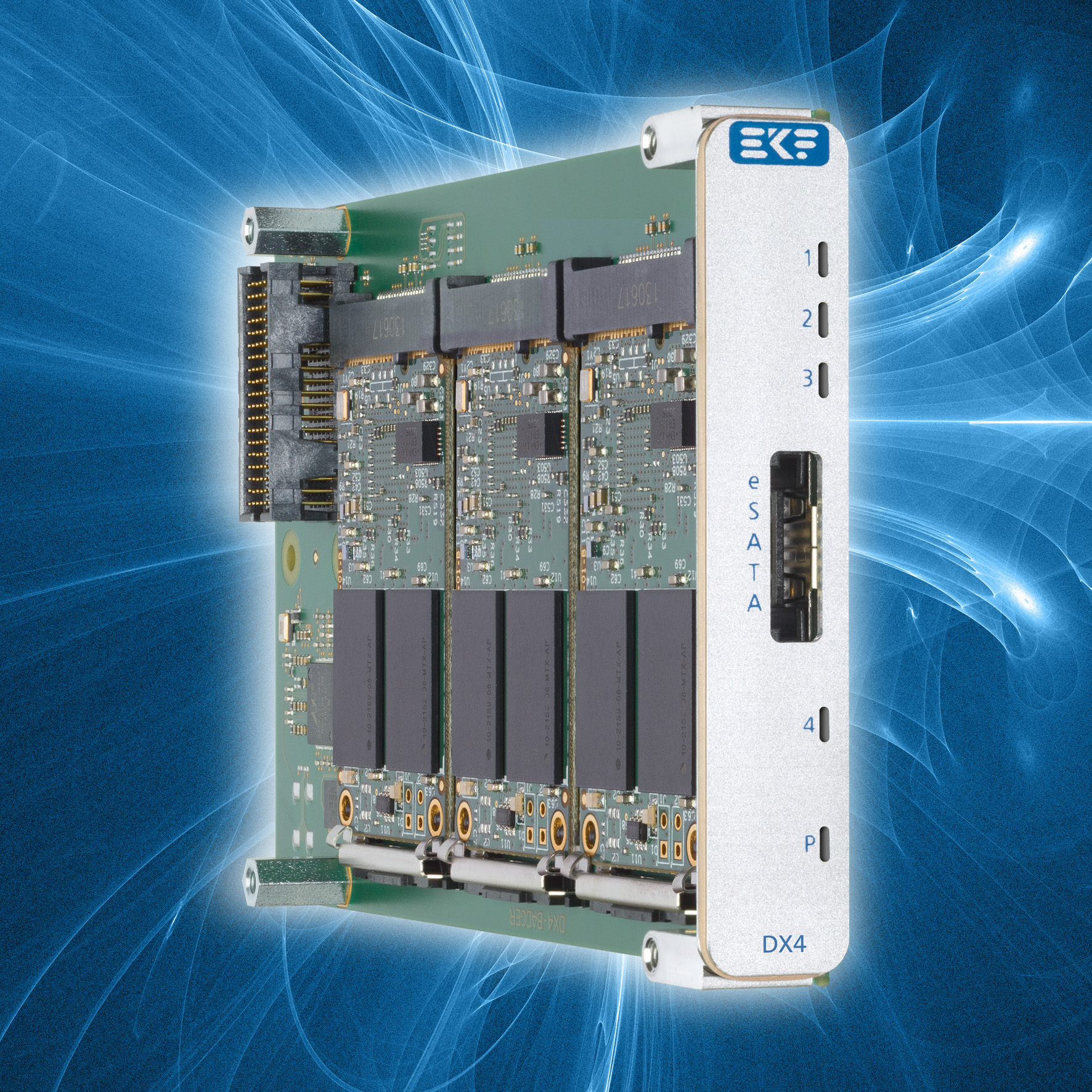

DX4-BADGER XMC Mezzanine Module

Quad Channel SATA Controller • Triple mSATA Sockets



The DX4-BADGER is a XMC style mezzanine card, equipped with a quad-channel PCI Express® to SATA 6Gbps controller, and three on-board sockets for mSATA solid state drives (SSD). With a capacity available of up to 1TB as of current, mSATA is a fast growing storage module form factor. The Marvell® SATA 3.0 controller allows RAID or non RAID operation, and incorporates speed negotiation to backward support 3Gbps and 1.5Gbps. A front bezel eSATA connector is provided for attachment of an external SATA storage device.

The DX4-BADGER connects up to four SATA III (6G) devices to a PCIe 2.0 host, delivering up to 1 Gigabyte-per-second (GBps) bandwidth when a two-lane 5.0 Gbps interface is available. In addition, hardware RAID operation is supported, running with an enhanced ARM-based processor to offload the host CPU, and Marvell® HyperDuo technology for automated SSD/HDD tiering. With respect to the three mSATA sockets provided on the DX4-BADGER, a Terabyte RAID system can be simply configured.
