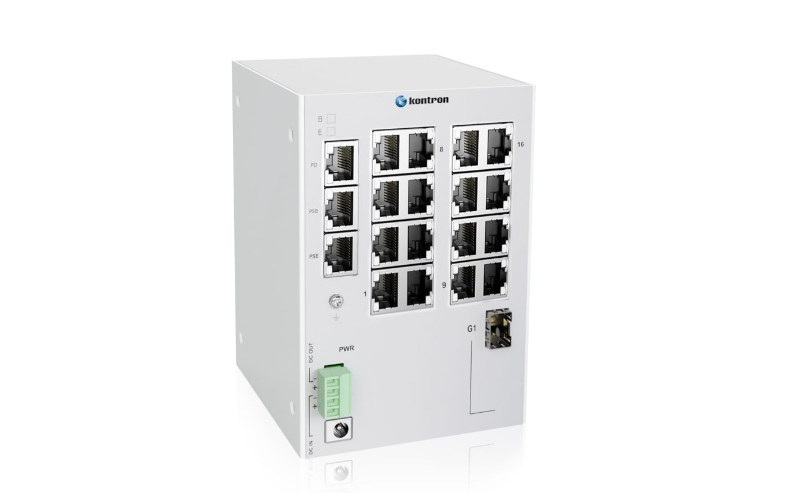

KSwitch D3 UMPD Series New

• Unmanaged, industrial grade, high-power-capable
• Layer 2 line-speed switching fabric (non-blocking)
• Redundant power input (12 - 58 V DC)
• Build-in PoE splitter (12 V DC, 1 A output)
• Reverse power protection
• 2 K V surge immunity on RJ45 ports
• 1.5 K V Hipot for port isolation

The KSwitch D3 UMPD Series are cost-effective unmanaged industrial Ethernet switches with up to 16 TX fast Ethernet ports and daisy-chaining capabilities (PD/PSE). It is best suited for easy-to-use plug-n-play applications with the ability of 1 Gigabit PD port, and 1 or 2 Gigabit PSE port (PSB) which meet IEEE 802.3af/at standard output and up to 60 Watts high power output. Due to its fan-less design, IP30 certification and wide range of operating temperature (-40 °C to 75 ºC), the KSwitch D3 UMPD Series can easily be used in factory production lines, embedded into machine systems or applied for any simple network expansion. It offers both DIN-Rail or rack mount installation.
